Zipper Durability Testing for Waterproof Bags

Zipper durability testing exists because the closure is the shortest-life component on most waterproof bags: zipper durability testing — the cycle, pull, torsion and crosswise protocols that rate how many operations and how much load a zipper survives — answers the warranty question that dominates soft-goods returns: not "did the fabric fail" but "did the zip give up first," which matters because a waterproof bag is only a waterproof bag while its closure closes: the panels can hold 10,000 mm for a decade, and the day the slider stops meshing the elements or the teeth separate under load, the rating is a memory. Waterproof zippers raise the stakes further: the TPU or PU sealing face that makes the closure watertight is also a wear surface, so every open-close cycle trades a microscopic amount of seal for convenience, and the durability question doubles — mechanical life and sealing life, running on one set of teeth. This guide walks the standard test families and what each exposes, prices the waterproof-zipper-specific failure modes, maps the contamination and environment axes that field duty adds, and closes with the specification lines that make closure life a purchase-order number rather than a brand reputation gamble.

The manufacturer reference is QUANZHOU JUNYUAN BAGS, producing custom waterproof bags since 2014 across a 4,950 m² SGS-verified facility: 7 lines, 149 machines, 137 staff, 200,000 pieces monthly. Standard terms — MOQ 500 per design, samples 6–10 working days, bulk 35–50 days, AQL 2.5 inspection, 30/70 T/T, FOB Xiamen — with shipping to 100+ countries.

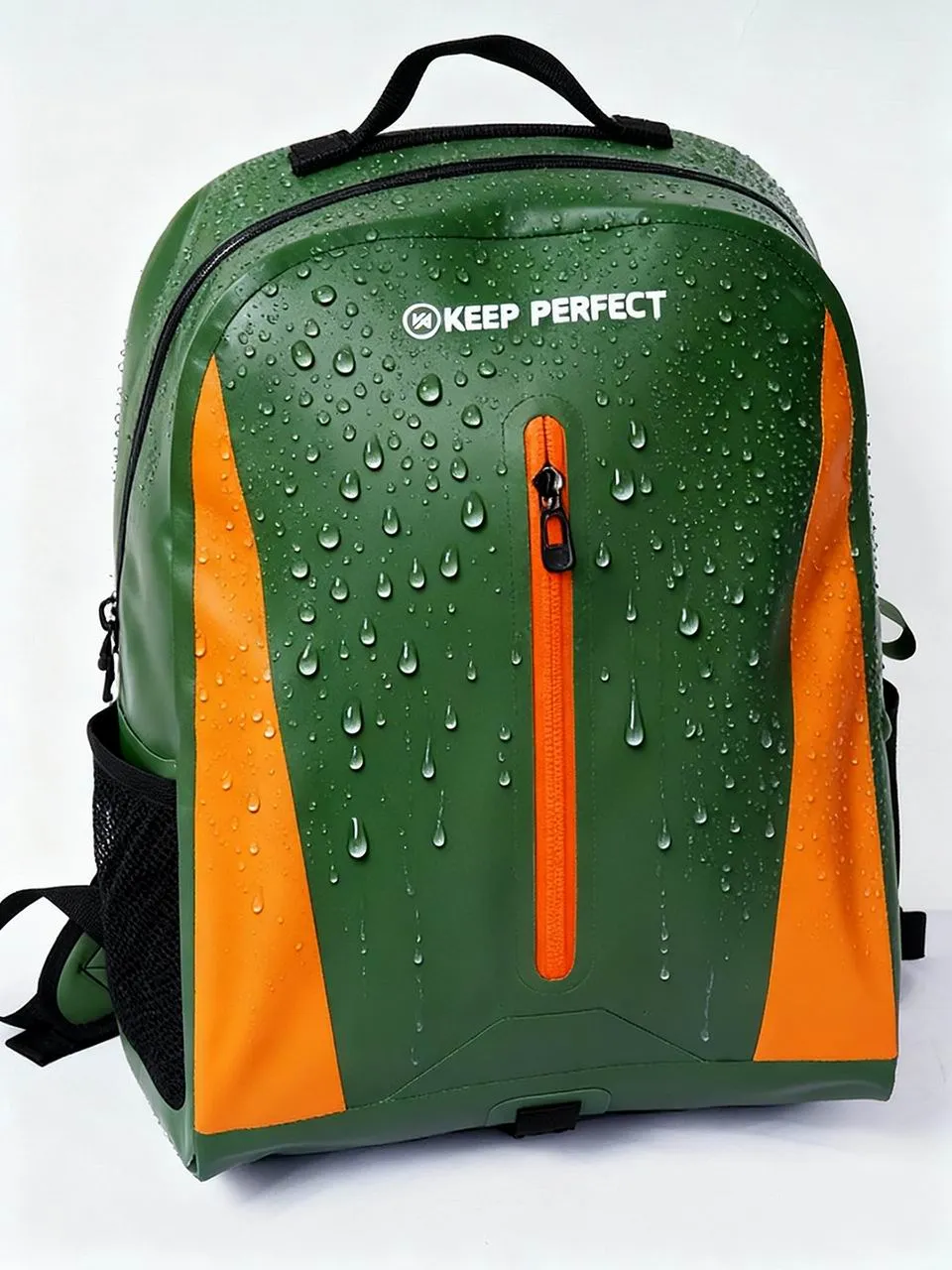

Backpack zipper at the main compartment — The zipper is the only moving part most bags have — and moving parts are where durability goes to be tested.

Hiking pack zip under tension on the trail — Crosswise load is the zipper’s natural enemy: every overstuffed pack pre-loads the failure.

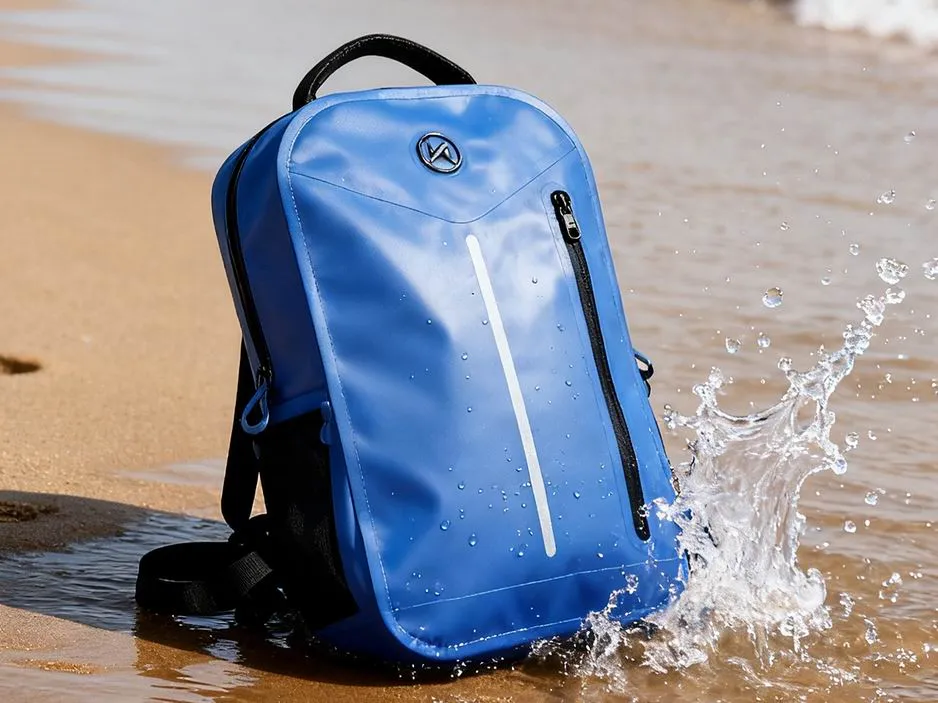

Dry bag closure in sandy conditions — Sand, salt and silt write the contamination chapter no clean-lab cycle test fully captures.

Why the zipper is the bag’s durability bottleneck

Every other component on a waterproof bag is static: panels flex but carry distributed load, seams hold fixed geometry, coatings wear gradually across their whole face. The zipper is the exception — a precision mechanism asked to mesh hundreds of small elements perfectly, thousands of times, under tension, in dirt, by users who pull at angles the designer never modeled. The failure asymmetry follows: panels fail gradually and visibly — scuffing, fading, thinning — while zippers fail suddenly and completely: one split tooth, one worn slider throat, one stretched tape section, and the closure that sealed yesterday leaks today. The load environment compounds it: an overstuffed pack pre-loads every tooth with crosswise tension before the slider even moves; a curved track multiplies slider friction at the bend; and the waterproof variants add sealing compression to the mechanical work of every cycle, which is why a watertight zip that glides like a coil zip is a warning sign, not a feature — sealing force is friction by design. The warranty arithmetic settles the priority: across soft-goods categories, closure failures dominate return reasons, and on waterproof builds the closure failure is total — a dry bag with a dead zip is a tote. The engineering conclusion our closure systems guide draws holds for testing: the closure is selected, engineered and verified as the product’s critical mechanism, and zipper durability testing is the protocol family that turns "smooth zip" from a sample-room impression into a rated, verifiable life.

The cycle test: rating operational life

The reciprocating cycle test is the headline protocol: a machine drives the slider open and closed under defined lateral tension, counting cycles to failure — the operational life number buyers quote. The protocol details carry the meaning: the lateral tension simulates the crosswise load of a stuffed bag, so a cycle count without its tension is a number without a duty; the stroke covers the full track, because partial-stroke cycling misses the end-stop and terminal-zone wear; and failure is defined per verdict type — teeth failing to mesh, slider jamming, tape separating, or for waterproof variants, the seal failing its leak check. The life bands read roughly across the category: standard coil zippers on light duty rate in the low thousands of cycles; quality resin-tooth zippers on working builds rate 5,000–10,000-plus; and waterproof zippers rate lower than their conventional siblings at equal build quality, because every cycle abrades the sealing faces — the price of watertightness, paid in operational life, that our waterproof zipper guide prices against the roll-top alternative. The waterproof-specific verdict: the cycle test must end with a leak test, not just a mechanical inspection — a zip that still runs but no longer seals has failed its product purpose at a cycle count the mechanical verdict alone would call a pass. The buyer’s audit: ask for the cycle count with its lateral tension, its stroke definition and its end-of-test leak verdict — three pieces of metadata that separate a durability rating from a marketing number, the same protocol-plus-basis discipline our fabric strength guide demands for every strength claim.

The strength battery: pull, torsion and crosswise

Cycle life is the longevity verdict; the strength battery is the abuse verdict — five static and quasi-static tests, each exposing a different failure mode. Slider pull-off: the force to pull the slider off the track or tear its throat — the verdict for the user who yanks at a jammed zip. Crosswise strength: lateral tension across a closed zip until teeth separate or tape tears — the overstuffed-pack verdict, and the single most field-relevant number for bags, because every overloaded compartment is a slow crosswise test. Top-stop and bottom-stop strength: the force to drive the slider through the stops — the verdict for the hurried user at the end of travel. Tooth strength: individual element resistance to shearing and pulling off the tape — the verdict behind tooth-loss failures in the field. Torsion and twist: resistance of the closed zip to wringing loads — the verdict for bags that get sat on, dropped and crushed in cargo. The waterproof variants reprice the battery: watertight zips carry lower crosswise ratings than heavy conventional zips of the same gauge because their tooth geometry is optimized for sealing compression rather than raw separation strength — which is why submersion-rated dry bags route around the weakness with fold-over flaps and buckle backups, the closure architecture our closures guide compares. The specification habit: the battery is quoted per failure mode with its force in newtons, not as "heavy duty" — and the crosswise number is matched to the product’s realistic overstuff load, not to the brochure load, the same honest-duty mapping our load stress guide applies to anchors and straps.

Test	The load applied	Failure it exposes	Field story
Cycle (reciprocating)	Repeated open-close under lateral tension	Wear: teeth, slider, seal faces	Years of daily use
Crosswise strength	Lateral pull across closed zip	Tooth separation, tape tear	Overstuffed compartment
Slider pull-off	Axial pull on the slider	Slider throat failure	Yanking a jammed zip
Stop strength	Slider driven through end stops	Stop blow-out	Hurried full-travel slams
Torsion	Wringing twist on closed zip	Element skew, mesh loss	Sat on, crushed in cargo

The waterproof-zipper specifics: two clocks on one track

A waterproof zipper carries two durability clocks where a conventional zip carries one, and the test plan must read both. The mechanical clock: teeth, slider, tape and stops wearing on the same physics as any zip — cycle fatigue, crosswise separation, slider throat wear. The sealing clock: the TPU or PU coated faces that compress to block water wear with every cycle, contaminated by every grain of sand the track meets, and degraded by the UV, heat and chemistry axes our material guides price — a zip can run mechanically perfect for 10,000 cycles while its seal fades at 3,000, which is why the end-of-test leak verdict, not the mechanical verdict, is the waterproof durability number. The friction tell: sealing compression makes watertight zips stiffer to operate — and stiffness tempts users into angle-pulls and yanks that accelerate both clocks, which is why lubrication discipline — silicone grease on the terminal zone per the maker’s protocol — is part of the durability specification, not an afterthought; the care instructions that ship with the product are a life-extension feature. The environment axes compound: cold stiffens the sealing faces and raises operating force, the low-temperature map our environmental testing guide prices for every polymer; UV chalks the coating on exposed zips, the degradation sequence our UV guide maps; and salt crystallizes in the tooth valleys on marine duty, abrading the seal faces with every cycle. The engineering conclusion: waterproof zipper life is specified as cycles-to-leak-failure under named tension, with lubrication care defined — and products whose duty exceeds the honest number route to roll-tops or flap-protected zips rather than overspecifying a mechanism past its physics.

Contamination and environment: the field chapters the lab misses

Clean-lab cycle tests rate the mechanism; field duty adds the contamination and environment chapters that decide real life. Sand and silt: abrasive particles in the track multiply slider wear and, on waterproof zips, grind the sealing faces — beach, desert and river duty programs add contaminated cycling, running the test with a defined grit load, because a zip rated 5,000 clean cycles may manage 500 sandy ones. Salt: marine duty crystallizes brine in the tooth valleys — the crystals abrade, the chemistry corrodes metal sliders, and the fix is behavioral as much as mechanical: fresh-water rinse discipline, which is why marine-product durability specifications include the care protocol the product manual must carry. Temperature: cold raises operating force and brittles polymer sliders — the zipper version of the closure-contraction failure our environmental guide maps — while heat softens sealing faces into faster wear. Ice: the extreme cold-duty chapter, where frozen tracks need the de-icing operation protocol, not more force. UV and aging: exposed zips degrade with the panels — and the aged-zipper test, cycling the zip after the weathering protocol rather than before it, is the honest sequence our accelerated aging guide standardizes as age-then-insult. The buyer’s audit for the contamination chapter: ask what the cycle test was run with — clean track or defined grit — and ask for the aged-zipper leak verdict where the product lives outdoors. A durability number without its contamination and aging basis is a laboratory property; the field number is the one the warranty budget should be built on. Cycle-count, crosswise-strength and pull-off protocols are conventionally run to published ASTM and ISO test methods, and buyers who want the number verified outside the factory send it to independent laboratories such as SGS.

Construction choices that buy zipper life

Durability testing prices zippers; construction design buys the life back, and the levers are known. Gauge and tooth size: larger teeth carry higher crosswise loads and tolerate contamination better — the arithmetic behind #8 and #10 gauges on working builds where #5 would do on fashion duty. Track geometry: straight tracks outlast curved ones because bend friction multiplies slider wear — pattern design that straightens the main closure is free durability, the design-time fix our wear-map logic applies to every component. Flap protection: a storm flap over the zip sheds grit, UV and direct wetting — buying both clocks with one pattern piece, and adding a user step that must be priced honestly against convenience. End reinforcement: bar-tacked terminal zones and boxed stops absorb the slam loads the stop-strength test prices. Backup closures: buckles and fold-overs on submersion-rated dry bags unload the zip’s crosswise duty in service — the architecture that lets a watertight zip spend its life sealing rather than load-bearing. Lubrication and care design: the product that ships with grease, a care card and a rinse instruction is engineering its second clock — and the brands that print the care protocol on the hangtag are buying durability at zero unit cost. The selection synthesis: zipper life is bought in four currencies — gauge, geometry, protection and care — and the cheapest currency is always the design one, which is why the durability specification belongs in the pattern review, not just the component sheet, the same construction-level thinking our seam and closure guides apply across the build.

The zipper durability specification: six lines

The guide compresses to six specification lines. One: the component — make, model, gauge and sealing system named, because zipper families differ in life by multiples at identical price. Two: the cycle rating — cycles-to-failure with lateral tension, stroke definition and, for waterproof variants, the end-of-test leak verdict that defines the real life. Three: the strength battery — crosswise, slider pull-off, stop strength and torsion in newtons, with crosswise matched to the realistic overstuff load. Four: the contamination and aging basis — clean or grit-loaded cycling, aged or fresh specimens, named per the duty. Five: the construction package — gauge selection, track geometry, flap protection, terminal reinforcement and backup closures specified in the pattern, not just the component sheet. Six: the care protocol — lubrication, rinse and operation instructions that ship with the product, plus lot verification under the AQL frame our AQL guide documents, since slider and tape lots drift like every other component. Six lines turn "smooth, durable zip" from a sample-room impression into a rated commitment — and the chain that executes it, 200,000 pieces monthly, samples in 6–10 working days, bulk 35–50 days, FOB Xiamen, is documented end to end for buyers who want the factory behind the cycle count before the first order.

Frequently Asked Questions

Q1. What is zipper durability testing?

A battery of protocols — reciprocating cycle tests, crosswise strength, slider pull-off, stop strength and torsion — rating how many operations and how much load a zipper survives, with waterproof variants adding an end-of-test leak verdict.

Q2. What is the zipper cycle test?

A machine drives the slider open and closed under defined lateral tension, counting cycles to failure — teeth not meshing, slider jamming, tape separating, or for waterproof zips, the seal failing its leak check.

Q3. How many cycles should a good bag zipper last?

Bands vary by build: light-duty coil zips rate in the low thousands; quality resin-tooth zips on working builds rate 5,000–10,000-plus. Waterproof zips rate lower than conventional siblings at equal quality — the price of watertightness.

Q4. What is crosswise zipper strength?

The lateral force a closed zip withstands before teeth separate or tape tears — the overstuffed-pack verdict and the most field-relevant static number for bags, matched to realistic overstuff load, not brochure load.

Q5. Why do waterproof zippers wear out faster?

Two clocks on one track: the mechanical mechanism wears like any zip, while the TPU or PU sealing faces abrade with every cycle. A watertight zip can run mechanically perfect long after its seal has faded — life is cycles-to-leak-failure.

Q6. How does sand affect zipper life?

Abrasive particles in the track multiply slider wear and grind sealing faces — a zip rated 5,000 clean cycles may manage 500 sandy ones. Beach and river duty programs run contaminated cycling, not clean-lab cycles.

Q7. Does salt water damage waterproof zippers?

Yes: brine crystallizes in tooth valleys, abrading seal faces and corroding metal sliders. Marine-duty specifications include the fresh-water rinse discipline as part of the durability package.

Q8. What makes a bag zipper fail suddenly?

The failure asymmetry: panels degrade gradually, zippers fail completely — one split tooth, worn slider throat or stretched tape section ends the closure. Sudden failures dominate because teeth and sliders carry concentrated load.

Q9. Do bigger zippers last longer?

Generally yes: larger gauges carry higher crosswise loads and tolerate contamination better, which is why working builds run #8 or #10 where fashion duty runs #5. Geometry and protection matter as much as gauge.

Q10. Why are waterproof zippers stiff to pull?

Sealing compression is friction by design — the faces must press to block water. A watertight zip that glides like a coil zip is a warning sign. Stiffness is managed with silicone lubricant, not eliminated.

Q11. Should zippers be tested after aging?

Yes for outdoor duty: UV, heat and cold degrade sealing faces and sliders, so the honest sequence cycles the zip after the weathering protocol — aged-zipper leak verdicts, not fresh-specimen passes.

Q12. What construction choices extend zipper life?

Four currencies: gauge selection, straight-track pattern geometry, flap protection against grit and UV, and terminal reinforcement — plus backup closures that unload the zip’s crosswise duty on submersion-rated builds.

Q13. Does lubricating a waterproof zipper matter?

Decisively: silicone grease on the terminal zone per the maker’s protocol extends the sealing clock. The care instructions that ship with the product are a life-extension feature, not paperwork.

Q14. What is slider pull-off strength?

The force needed to pull the slider off the track or tear its throat — the verdict for the user who yanks at a jammed zip, rated in newtons with the failure mode named.

Q15. Can a zipper be too strong for its bag?

Rarely — but an overspec zip adds stiffness, weight and cost the duty never uses. Match crosswise rating to realistic overstuff load and cycle rating to honest use frequency; the wear map prices the need.

Q16. How is zipper quality verified in bulk production?

First-article battery at sampling, then lot-level checks — cycle spot tests, crosswise pulls, operation force — under the AQL frame, because slider and tape lots drift like every other component.

Q17. What goes on a zipper durability specification?

Six lines: the named component, cycle rating with tension and leak verdict, strength battery in newtons, contamination and aging basis, the construction package in the pattern, and the care protocol plus lot verification.

Zipper Durability Testing: Proving the Closure Outlives the Bag
